UppercuT - TeamCity Integration - Part 2 (Create a Build Configuration)



Last time we created a project. This time we will set up the build configuration with it.



Create a Build Configuration

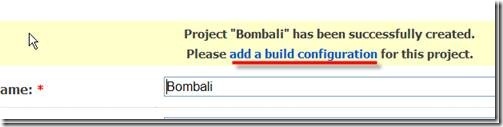

1. Click {add a build configuration} for this project.

  clip_image002_thumb[1]

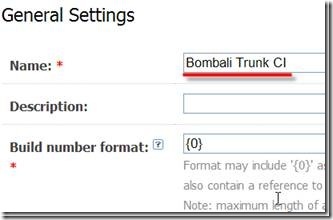

2. In the [Name:] field, we need to add something descriptive. We are building the trunk on every change. Let’s call it Bombali Trunk CI.

  clip_image004_thumb[1]

3. In [Artifact paths:] enter code_drop/*.zip.

  clip_image006_thumb[1]

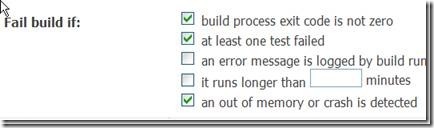

4. In the Fail build if: section, ensure that these settings are checked:

    a. build process exit code is not zero

    b. at least one test failed

    c. an out of memory or crash is detected

  clip_image008_thumb[1]

5. In the Build options: section, ensure that these settings are checked:

    a. Enable hanging builds detection

  clip_image010_thumb[1]

6. Click {VCS settings >>}.

  clip_image012_thumb[1]

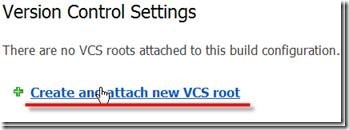

7. Click on {Create and attach new VCS root}.

  clip_image014_thumb[1]

8. Enter a name in [VCS root name:]. We are going to use our project and where the source is from, so we put in Bombali SVN. Choose what is most appropriate for you.

  clip_image016_thumb[1]

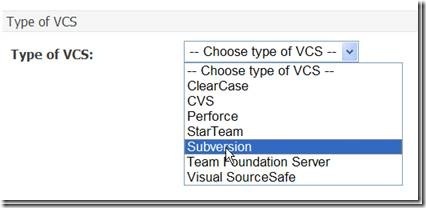

9. Select the appropriate source control. We select Subversion as our source control. NOTE: Each source control option has different options. We are only going to talk about SVN.

  clip_image018_thumb[1]

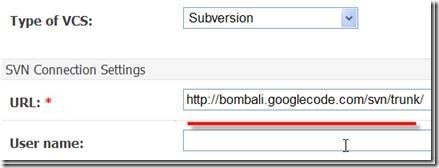

10. We enter the [URL:] to our project.

  clip_image020_thumb[1]

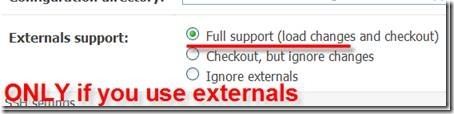

11. The next option is [Externals support:]. If you use externals at all, you would want to enable full support. And you would know if you are using externals. Otherwise, leave default to ignore externals.

  clip_image022_thumb[1]

12. I like to clear out [Labeling rules], but that is a matter of preference. With UppercuT we can get back to any specific build and revision based on our DLLs. Choose what is most appropriate for you.

  clip_image024_thumb[1]

13. I leave the [Checking interval:] at the default of [use global server setting (60 seconds)]. Choose what is most appropriate for you.

  clip_image026_thumb[1]

14. Click {Test connection}. If it is successful, we can move on. If not, make the edits you need.

  clip_image028_thumb[1]

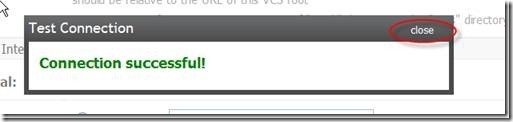

15. Click {close}.

  clip_image030_thumb[1]

16. Click {Save} to continue.

  clip_image032_thumb[1]

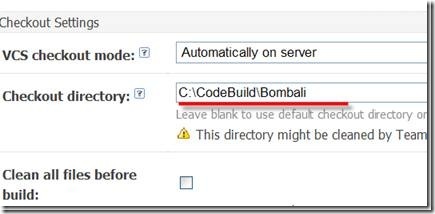

17. In the Checkout Settings section:

    a. [VCS checkout mode:] is Automatically on server.

    b. [Checkout directory:] is an appropriate directory for you. We are going to use C:\CodeBuild\Bombali.

    c. We leave [Clean all files before build:] unchecked. Choose what is most appropriate for you.

  clip_image034_thumb[1]

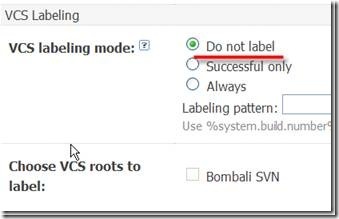

18. In the VCS Labeling section:

    a. We select [Do not label]. Choose what is most appropriate for you.

  clip_image036_thumb[1]

19. Click on {Choose Build Runner >>}.

  clip_image038_thumb[1]

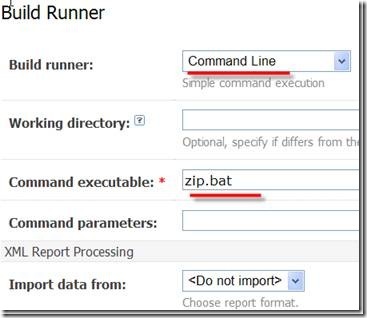

20. Set [Build runner:] to Command Line.

21. Set [Command executable:] to zip.bat.

  clip_image040_thumb[1]

22. We are leaving the XML Report Processing section set to its default for now. Choose appropriately if you would like to use this section.

23. Click {Save}.

  clip_image042_thumb

24. You should get a message that the build configuration has been created successfully.

  clip_image044_thumb[1]

25. Click on [Build triggering].

  clip_image046_thumb

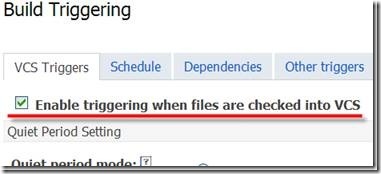

26. Check [Enable triggering when files are checked into VCS].

  clip_image048_thumb[1]

27. Click {Save}.

  clip_image050_thumb

28. Set any other options you need to set.



Next time we are going to run the build.

 UppercuT - TeamCity Integration Series

  1. Part 0 - Prerequisites
  2. Part 1 - Set up TeamCity Project
  3. Part 2 - Build Configuration
  4. Part 3 - Run the Build
  5. Part 4 - Code Drop / Artifacts

With this knowledge you shall build.
