How To - Gems And .NET

In my last post I showed gems being used for .NET. Now let’s talk about How.  Most of this stuff I’ve learned over the past two days, so if I have a mistake here or you have a better idea, please don’t hesitate to offer a better solution.

The GemSpec

The Gem::Specification reference is your friend.

In order to create a gem, you need to define a gem specification, commonly called a “gemspec”.

A gemspec consists of several attributes. Some of these are required; most of them are optional.

From here you learn what is required and what will just get you there.

Setup

1. Create a folder named gems in your top level source directory.

2. In that folder we are going to put our gemspec and version files. This is where we will store the files in source control (and one of them may become autogenerated).

3. We will bring our gems folder to our compiled source folder after we build. Then we can add in the compiled output.

GemSpec for .NET

1. Create a file named project.gemspec. In our example it is roundhouse.gemspec. This is the most important file for this entire process.

 first two files

2. Open the gemspec in your favorite notepad editor. Copy the below in and change it for you needs.

version = File.read(File.expand_path("../VERSION",__FILE__)).strip

Gem::Specification.new do |spec|
  spec.platform    = Gem::Platform::RUBY
  spec.name        = 'roundhouse'
  spec.version     = version
  spec.files = Dir['lib/**/*']

  spec.summary     = 'RoundhousE - Professional Database Change and Versioning Management'
  spec.description = 'RoundhousE is a Professional Database Change and Versioning Management tool'

  spec.authors           = ['Rob "FerventCoder" Reynolds','Pascal Mestdach','Jochen Jonckheere','Dru Sellers']
  spec.email             = 'chucknorrisframework@googlegroups.com'
  spec.homepage          = 'http://projectroundhouse.org'
  spec.rubyforge_project = 'roundhouse'
end

3. Just about everything with tick marks above you will edit to suit your needs. spec.name and spec.rubyforge_project (and the gemspec file name) should all match and not be an already existing project name on RubyForge.

4. If you are a singular author, instead of spec.authors, replace it with

spec.author = 'somebody'

You can also set up description for multiple lines.

spec.description = <<-EOF
   Rake is a Make-like program implemented in Ruby. Tasks and
   dependencies are specified in standard Ruby syntax.
 EOF

Dependencies On Other Libraries

What we call references. You have a dependency on them existing for your library to run. See this post.

VERSION file

This file is stupid simple. It’s a version number. I believe you can put whatever you want in here. It’s probably best to use the Assembly Version number here and stick with the .NET 4 octets of numbers (like 0.0.0.0) for version.

1. Create a file named VERSION.

2. Open it in your favorite editor and put the version you want here.

 VERSION with 0.5.0.242 as the contents of the file

Libraries

1. Create a folder called lib.

 adding in lib folder

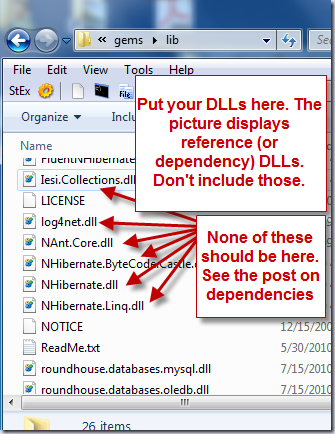

2. Copy YOUR compiled DLLs into here. Your references (or dependencies) should not go here. See How To: Gems and .NET - Dependencies.

 Put your dlls here

Documentation

Create a docs folder. In that folder goes your documentation. This could be release notes, a ReadMe, actual documentation. This area is open. Just make sure you add the docs folder to the specification.

spec.files = Dir['lib/**/*'] + Dir['docs/**/*']



Executables

If you want to give someone the ability to run an executable from the command line after installing your application with gems, and you use .NET, this is how you do it.

1. Create a folder named bin as a subdirectory next to the gemspec.

2. Put your executable (and dependencies) into the bin directory.

create a bin directory   stand alone executable in bin

3. Create your shim file (it’s named what you would type at the command line). I’ve called mine rh. The one above allows ruby to be able to actually execute the Windows executable. Let’s open it and see what it looks like. This, we learned from an answer to a post on stack overflow.  This shim also goes in source control

result = system(File.dirname(__FILE__) + "/rh.exe " + ARGV.join(' '))
exit 1 unless result



4. Don’t forget that space at the end of your executable name.

5. Open your gemspec. We need to make sure we have spec.executables filled out and our new directory added to our Files.

version = File.read(File.expand_path("../VERSION",__FILE__)).strip

Gem::Specification.new do |spec|
  spec.platform    = Gem::Platform::RUBY
  spec.name        = 'roundhouse'
  spec.version     = version
  spec.files = Dir['lib/**/*'] + Dir['docs/**/*'] + Dir['bin/**/*']
  spec.bindir = 'bin'
  spec.executables << 'rh'

  spec.summary     = 'RoundhousE - Professional Database Change and Versioning Management'
  spec.description = 'RoundhousE is a Professional Database Change and Versioning Management tool'

  spec.authors           = ['Rob "FerventCoder" Reynolds','Pascal Mestdach','Jochen Jonckheere','Dru Sellers']
  spec.email             = 'chucknorrisframework@googlegroups.com'
  spec.homepage          = 'http://projectroundhouse.org'
  spec.rubyforge_project = 'roundhouse'
end

Build And Push

You must already have Ruby (1.8.6 or better) and RubyGems installed and/or updated to at least 1.3.7 (gem update –system). You will want to use a RubyInstaller version of Ruby under the Ruby on Windows section.

1. Open a command line and type

gem build project

2. If there are no issues, you should have a gem for upload.

 roundhouse-0.5.0.242.gem

 roundhouse-0.5.0.242.gem

3. Create an account with RubyGems.org.

4. Ensure your project name isn’t already taken by searching for it. If it is you will need to rename your gemspec file, spec.name, and spec.rubyforge_project to a name that is not taken.

5. Type the following command:

gem push project_someversionnumbers.gem

 gem push roundhouse

6. Let it finish. Head out to rubygems.org and look at your shiny, new gem!

  sweet!

7. Test it.

gem install project

gem uninstall project



FollowUp

In my next post, I’ll show you how to make it stupid simple. UppercuT will support this feature natively so all you have to do is have a directory called gems (at the top level of your source) with the gemspec. During the build, it will create the VERSION file and copy your output the the lib folder (custom step for bin folder will be necessary). Then it will execute a step that builds the gem. All for the price of “build”. That’s coming up in the next blog post. In the meantime, feel free to ask any questions you have. Stay tuned…
